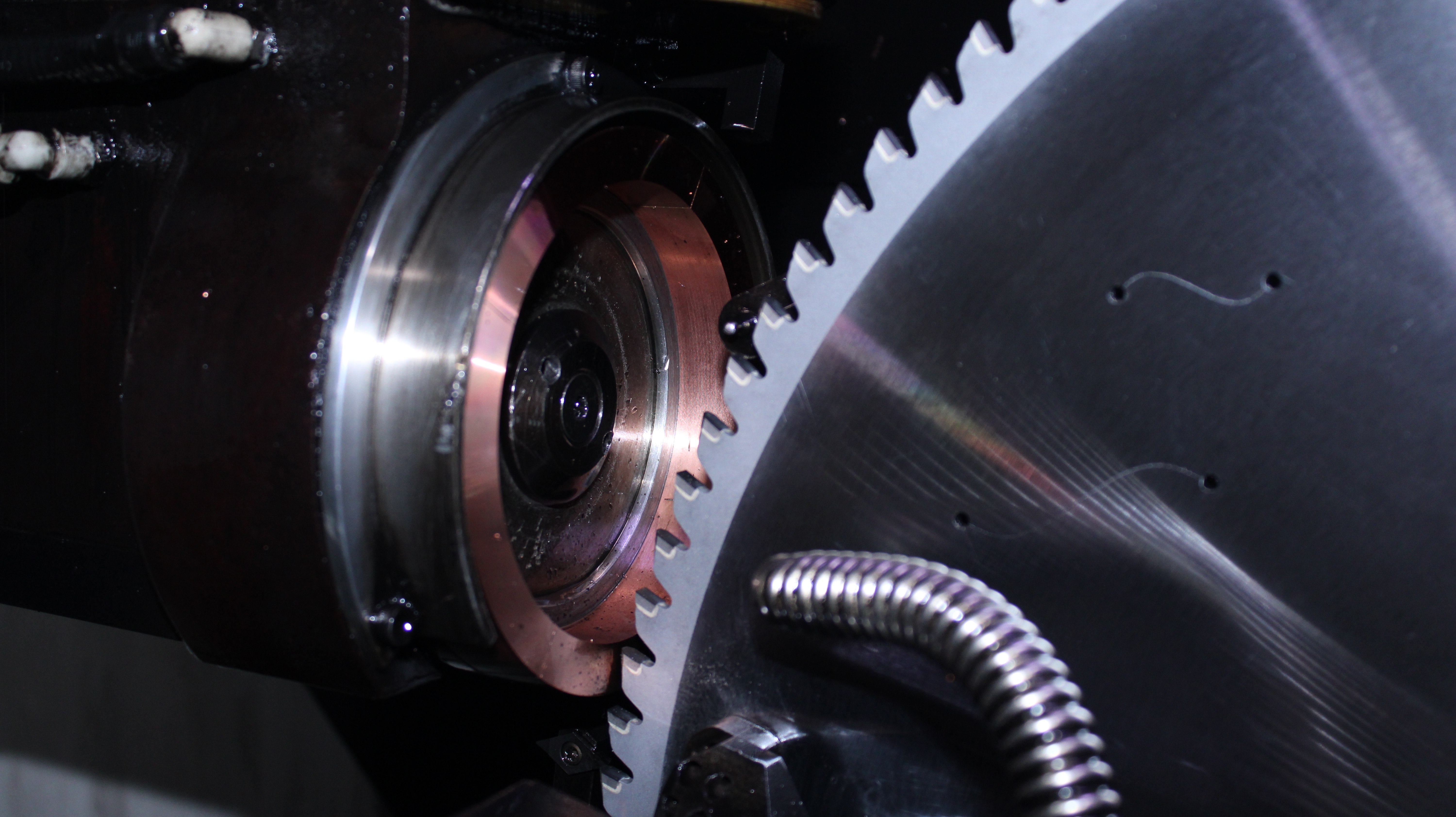

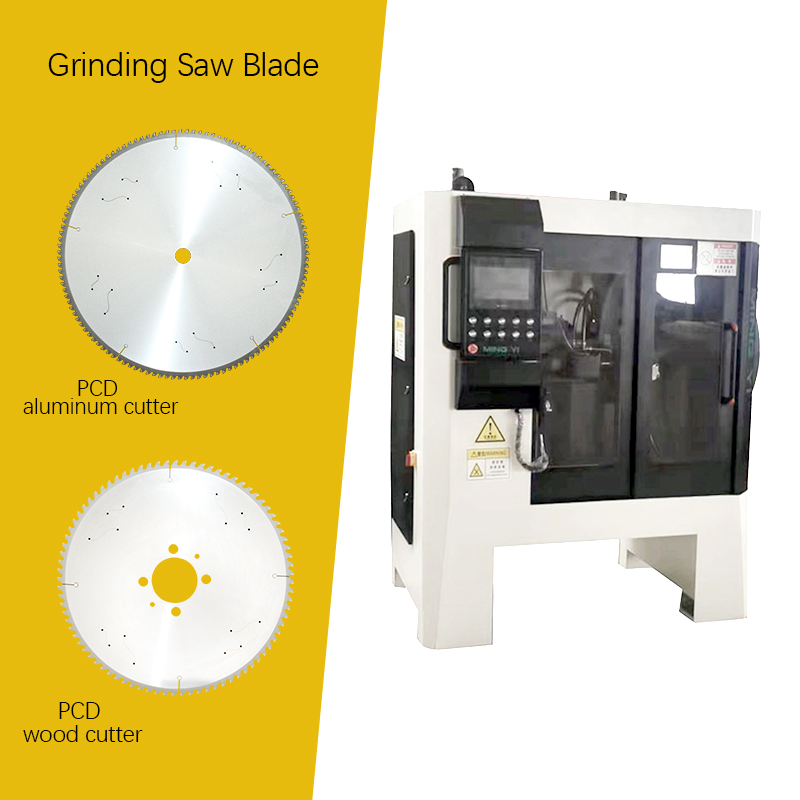

Electro-erosion machine for machining the tooth top of PCD-tipped circular saw blade
-
DT800
| Electricat information | |||
| Voltage | Three phase five-wire systemm (380V+220V) | Total power | 3.5KW |
| Rated power | 2KW | Discharge power | 500W |
| Air pressure | 0.5±0.1MPa | Dehumidification required | |
| Processing Capacity | |||
| Processing efficiency | About 2-4 minutes / tooth | External diameter range | 100-800mm |
| Tooth pitch range | ≤65mm | Tooth width range | ≤15mm |
| Bore diameter range | 20-80mm | Back angle range | 5°-20* |
| Runout accuracy | ≤0.03mm | Discharge angle | Standard EDM Fluid |
| Backward angle medium | -45°-+45° | ||
| Machine linformation | |||
| Dimersions | 1600*1300*2200mm | Weight | 1500kg |
| Common Consumables | |||
EDM liquid, electrode, conductive needle for electrode, filter, PCD double ended knife | |||
