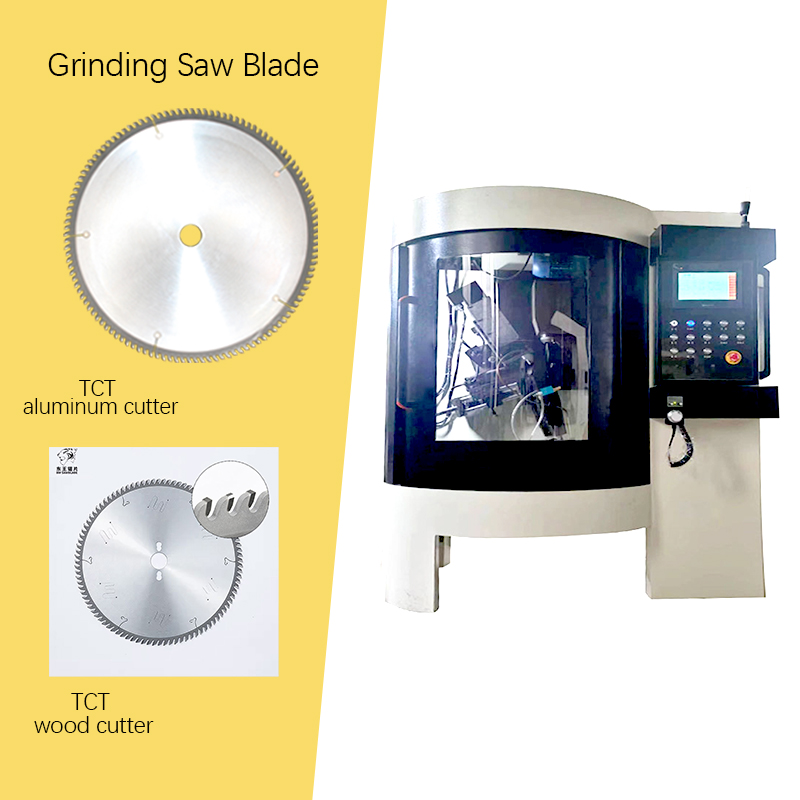

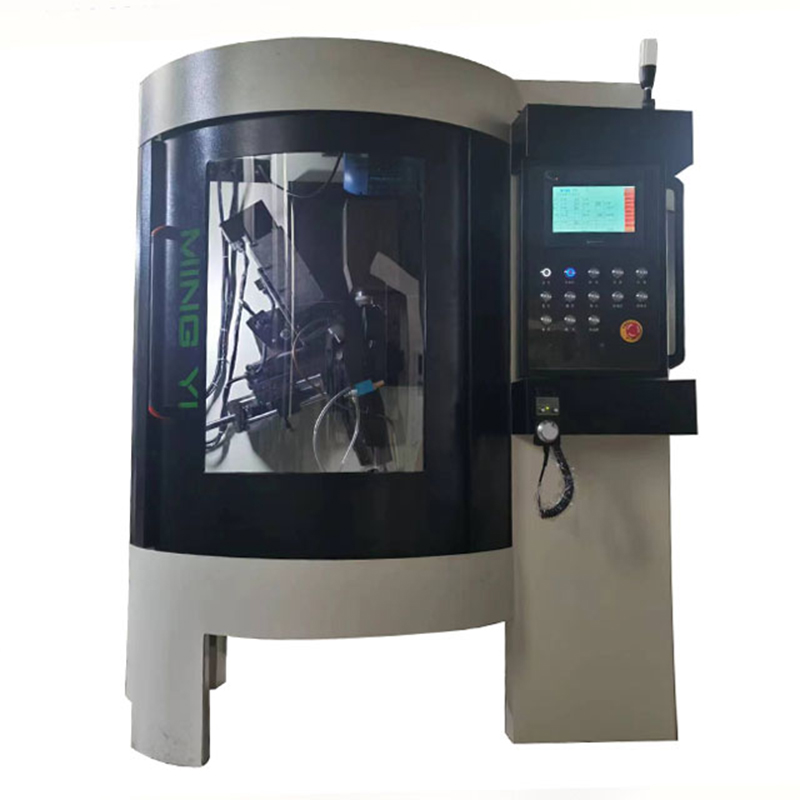

CNC Sharpening Machine for Tooth Top&Face Grinding of Carbide Tipped
Circular Saw Blades with a diameter of 80 to 800 mm.Best suited for Pro
duction & Servicing ofTCT Saw blade.
Circular Saw Blades with a diameter of 80 to 800 mm.Best suited for Pro
duction & Servicing ofTCT Saw blade.
-
FT800

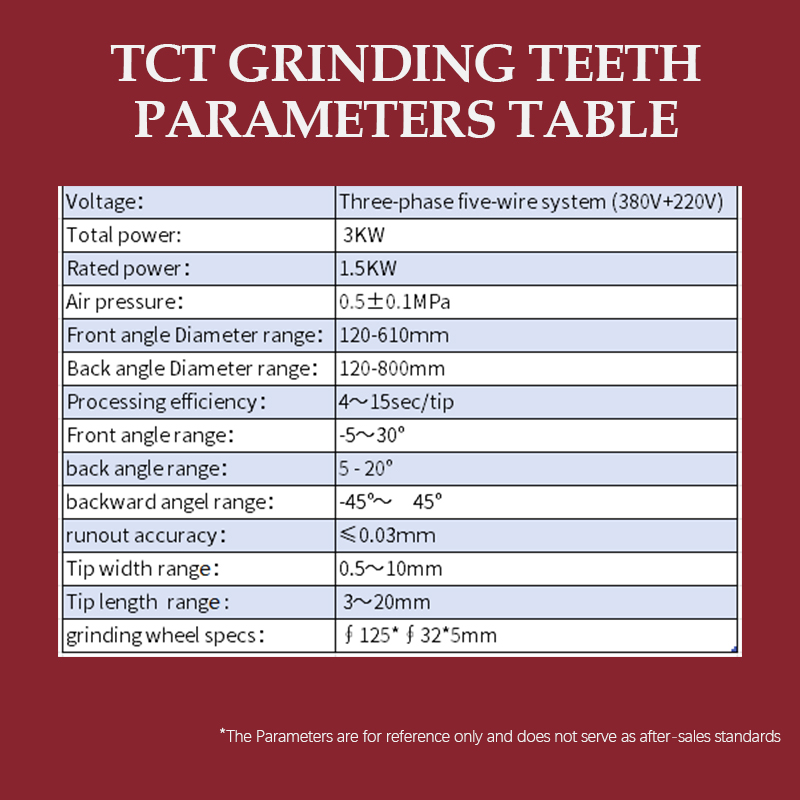

| SPECIFICATIONS | |||
| Outside diameter | 80-800 mm | Grinding shaft drive output | 0.7 kw |
| Bore diameter | 12 mm | Grinding wheels | |
| Blade thickness | 2-7 mm | Outside diameter | 125 mm |
| Tooth pitch | ≤ 100 mm | Bore diameter | 32 mm |
| Hook angle | -10° — +25° | Peripheral speed | approx. 27m/s |
| Clearance angle | +8°—20° | Coolant tank capacity | approx. 125 1 |
| Bevel grinding | Power supply voltage | 220V three-phase | |
| on the tooth top | ≤ 45° | five wire | |
| on the positive tooth face | ≤ 15° | Total rated power | 3.5kw |
| Grinding paths | Weight | approx. 1700 kg | |
| Hook angle | < 20 mm | Dimension | 1400*1100*1900mm |
| Clearance angle | 24 mm | Package Dimension | 1500*2100*2200 |
