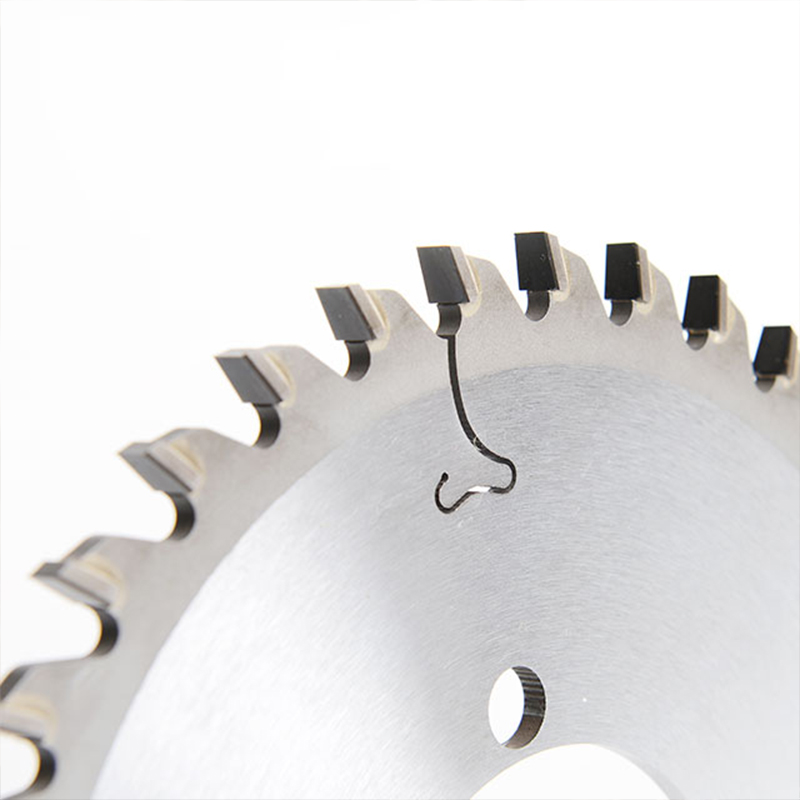

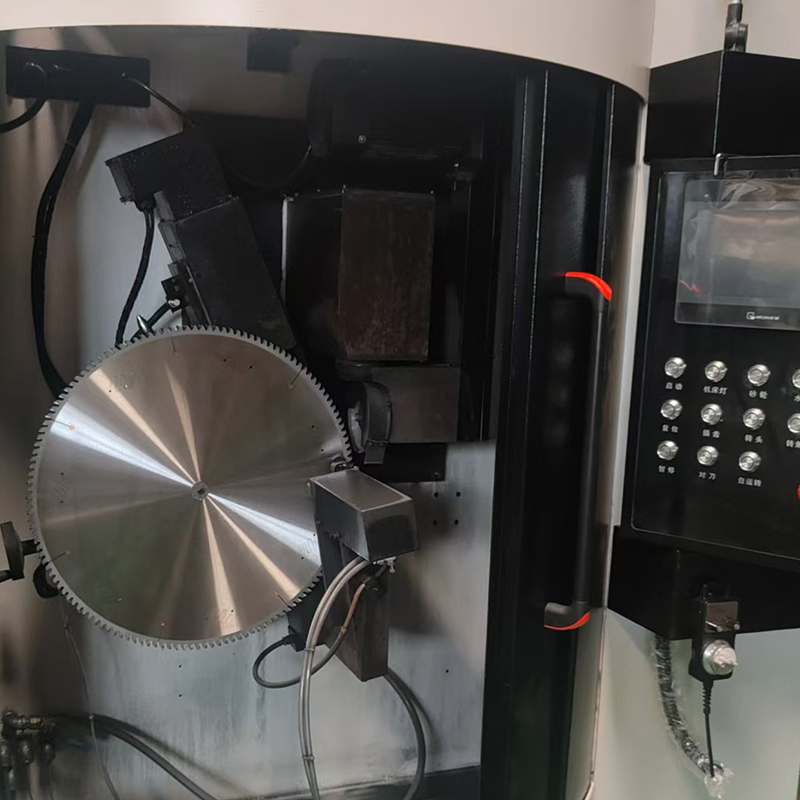

Unit for machining the tooth sides of PCD-tipped circular saw blade by electro-erosion
-
DS800

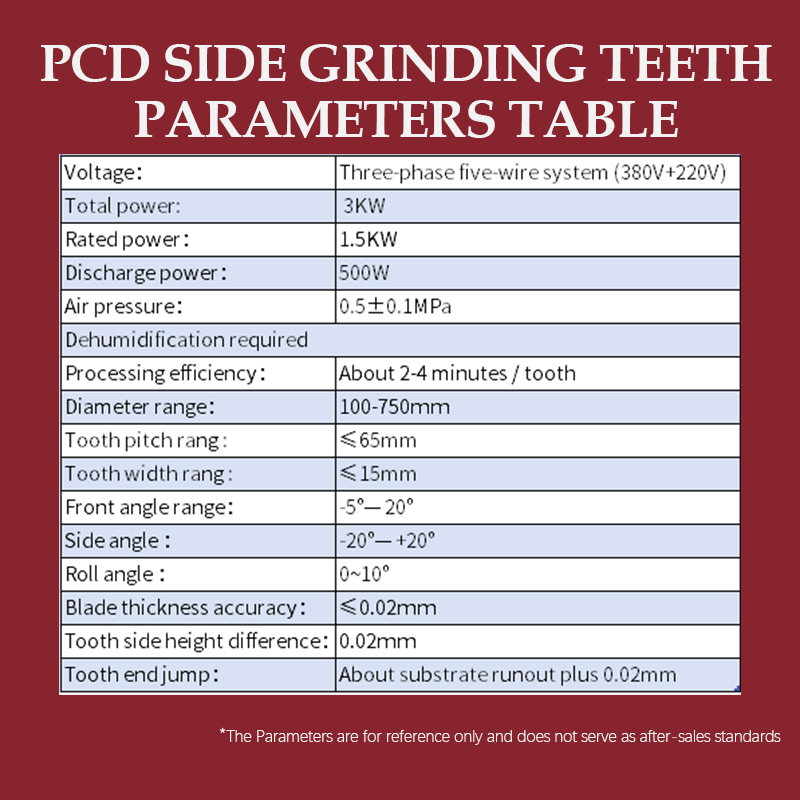

| Electricat information | |||
| Voltage | Three phase five-wire systemm (380V+220V | Total power | 3KW |
| Rated power | 1.5KW | Discharge power | 500W |
| Air pressure | 0.5±0.1MPa | Dehumidification required | |
| Processing Capacity | |||
| Processing efficiency | About 2-4 minutes / tooth | Diameter range | 100--800mm |
| Tooth pitch range | ≤ 65mm | Tooth width range | s15mm |
| Front angle range | -5°-20° | Side angle | -20°－＋20° |
| Roll angle | 0-10* | Blade thickness accuraCy | ≤0.02mm |
| Tooth side height difference | 0.02mm | Tooth end jump | About substrate runout plus 0.02mm |
| Machine linformation | |||
| Dimersions | 1.75*1.2*2.0m | Weight | 1.6T |
| Dimersions | |||

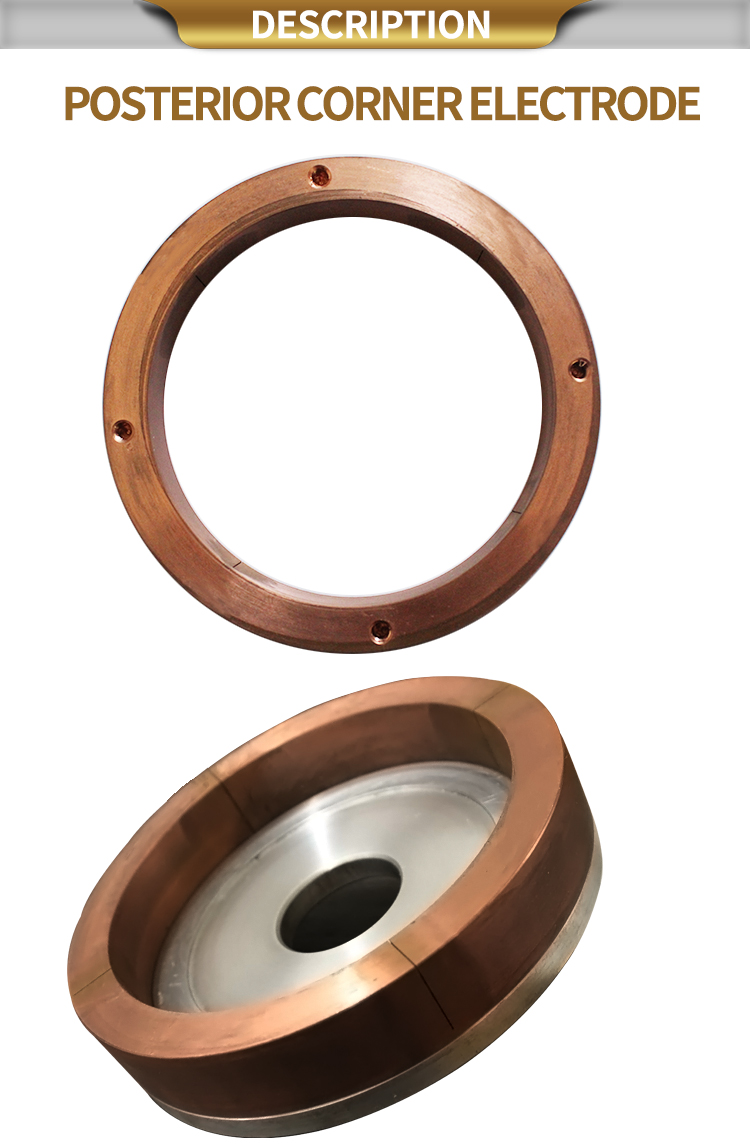

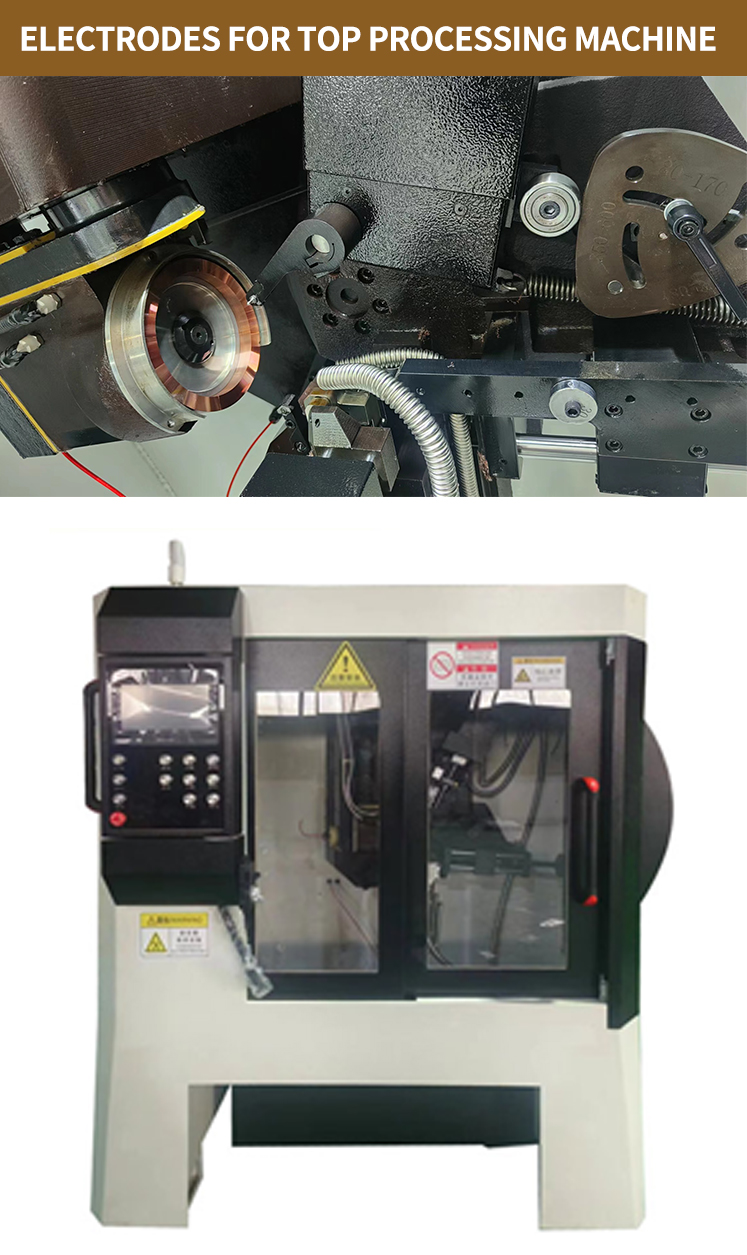

| EDM liquid, electrode, conductive needle for electrode, filter, PCD double ended knife | |||
